How To Wire an ATS (Automatic Transfer Switch) ⚡

An Automatic Transfer Switch (ATS) is an essential component for any home or business using a hybrid solar setup or a backup power system. Its primary role is to automatically switch the power source between your solar inverter and the distribution utility (e.g., Meralco, Beneco, Ifelco, Veco) depending on availability. ✅

Correct ATS wiring ensures safety, efficiency, and uninterrupted power for your home appliances. Improper wiring, on the other hand, can result in severe damage to your inverter, battery, or even cause electrical fires. ⚠️

🔹 Two Main ATS Wiring Configurations

There are two common ways to wire an ATS. Each configuration determines which power source your home will prioritize:

1️⃣ Solar Inverter Priority 🔋 2️⃣ Distribution Utility Priority 🏢

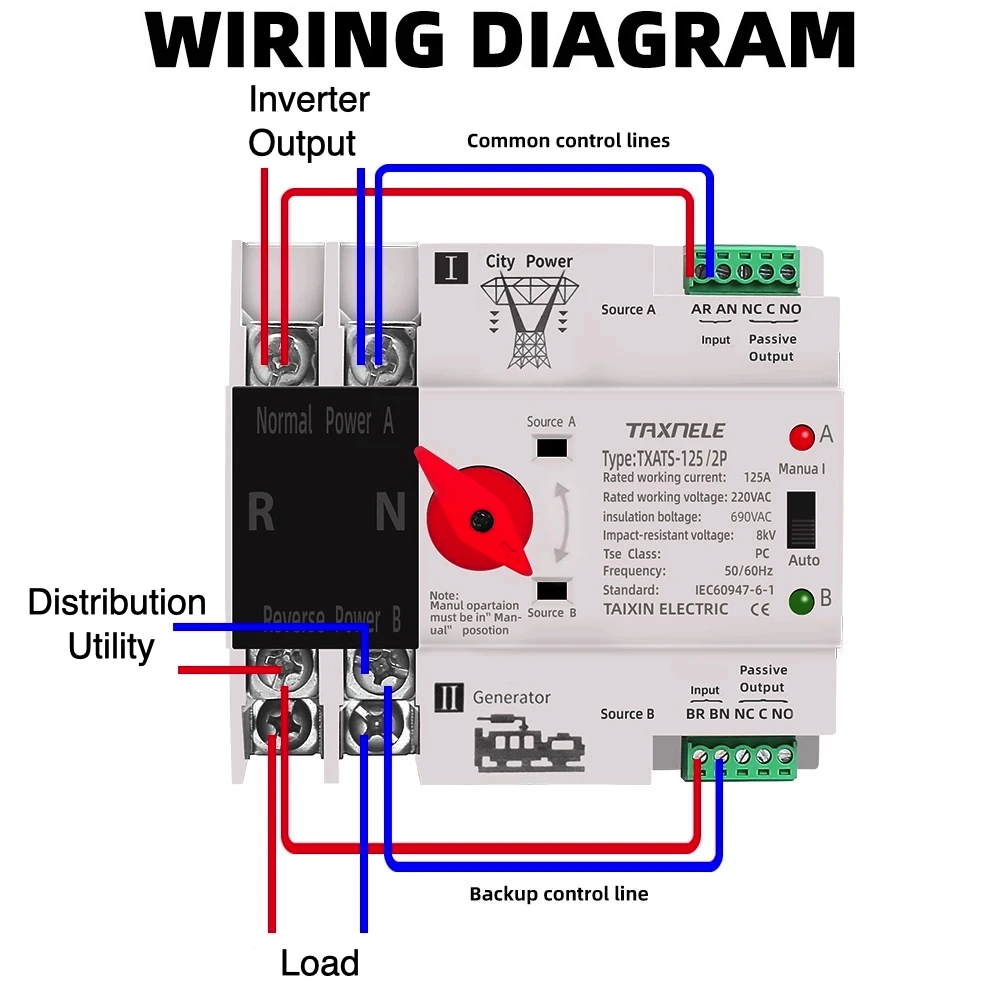

1️⃣ Solar Inverter Priority ⚡

This setup prioritizes solar energy. When your batteries have enough charge, the ATS will draw power from your solar inverter (brands like One Solar, TBE, Deye, etc.). Once the battery level drops below a safe threshold, the ATS automatically switches to the distribution utility.

Wiring guide:

• Top wiring → Solar Inverter (primary source)

• Left wiring → Distribution Utility (backup source)

• Bottom wiring → Load (always connected)

💡 Pro tip: Label wires with colored tags or numbers to avoid confusion during installation or maintenance. This simple step can save hours of troubleshooting later.

⚠️ Warning: Do not connect the load to the top or left terminals. Doing so may reverse the power flow and damage your inverter.

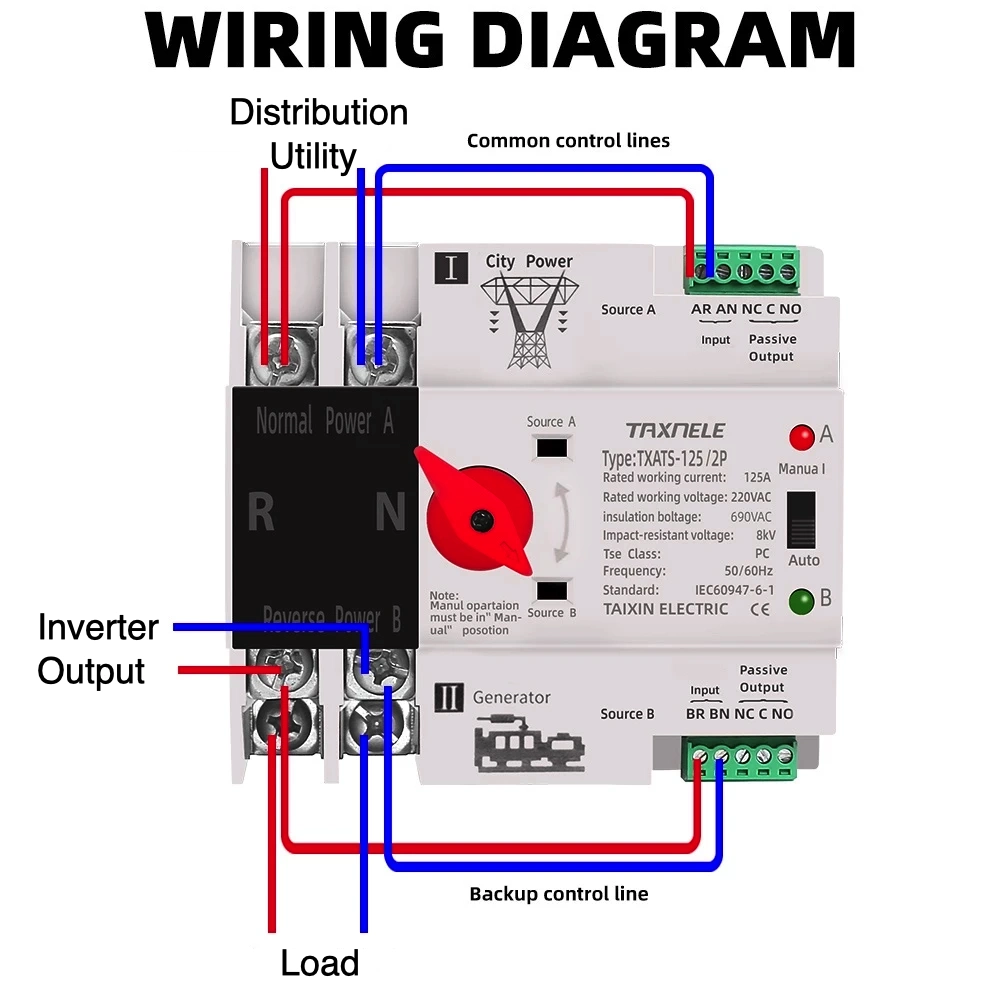

2️⃣ Distribution Utility Priority 🏢

This configuration prioritizes utility power first. The solar inverter acts as a backup. This is suitable for areas with generally stable electricity but occasional outages. It reduces battery cycling and prolongs battery life.

Wiring guide:

• Top wiring → Distribution Utility (primary source)

• Left wiring → Solar Inverter (backup source)

• Bottom wiring → Load

💡 Reminder: The bottom terminals always connect to the load, regardless of source priority. Failing to follow this can cause overloads or backfeeding issues.

⚙️ Important Notes on Control Wiring

Control wiring dictates how the ATS decides when to switch sources. Even if power terminals are correct, improper control wiring can render the ATS nonfunctional.

Key Points:

• Common Control Lines: Connect properly to ensure normal ATS operation.
• Backup Control Lines: Ensure backup signals are wired to the correct input terminals.
• Simulation Test: After wiring, temporarily disconnect your primary source to check if the ATS switches correctly.

⚠️ Safety Tip: Always shut off all power sources before connecting or modifying ATS control lines. Use insulated gloves, proper tools, and never work alone if handling high currents. 🛠️

✅ ATS Wiring Best Practices

1. Clearly label wires 🏷️ – Use tags or color codes for each connection.
2. Follow manufacturer manuals – Always refer to your ATS model’s wiring diagram.
3. Check load capacity – Ensure your ATS matches your system amperage to prevent overloads.
4. Verify grounding and bonding – Proper grounding protects both people and equipment.
5. Periodic Testing – Switch between sources manually occasionally to ensure smooth operation.
6. Secure mounting – ATS should be installed in a dry, ventilated location, away from dust and water.

💡 Extra tip: Keep a small notebook with your wiring map, inverter settings, and ATS configuration. This helps any future electrician understand your system quickly.

⚡ Quick Reference Table

🔌 Common Mistakes to Avoid

1. Reversing top and left terminals – Can destroy your ATS and inverter.
2. Not adding proper fuses or breakers – Overcurrent can damage equipment.
3. Skipping control wiring check – The ATS may fail during a power outage.
4. Poor grounding – Increases risk of electric shock or equipment damage.

⚠️ Remember: ATS wiring deals with high currents and can be dangerous. If unsure, hire a licensed electrician. Safety always comes first! 🦺

📌 Conclusion

An ATS provides seamless switching between your solar inverter and utility power, ensuring your home enjoys uninterrupted electricity. Whether you prioritize solar or utility power, proper wiring is key to system efficiency, longevity, and safety. 🌞🔋

For guidance, diagrams, or troubleshooting help, contact solarpanda.ph@gmail.com 📩. Always double-check wiring, labels, and grounding before powering your ATS.
