MCB vs MCCB: Which one to use on your solar setup?
Choosing the correct circuit breaker is one of the most important decisions in any solar setup. ⚡ It directly affects your system’s safety, reliability, and performance.
In this guide, we’ll clearly explain the difference between MCB (Miniature Circuit Breaker) and MCCB (Molded Case Circuit Breaker), and help you decide which one is right for your setup.
🔍 What is an MCB and MCCB?
-
MCB (Miniature Circuit Breaker) Used for small-to-medium solar setups. It is compact, affordable, and commonly used in residential systems.
-
MCCB (Molded Case Circuit Breaker) Designed for medium-to-large setups. It supports higher current capacity and offers better protection features.
👉 In simple terms: MCB = smaller systems MCCB = larger and more demanding systems
🛒 Common MCB Sizes in the Market

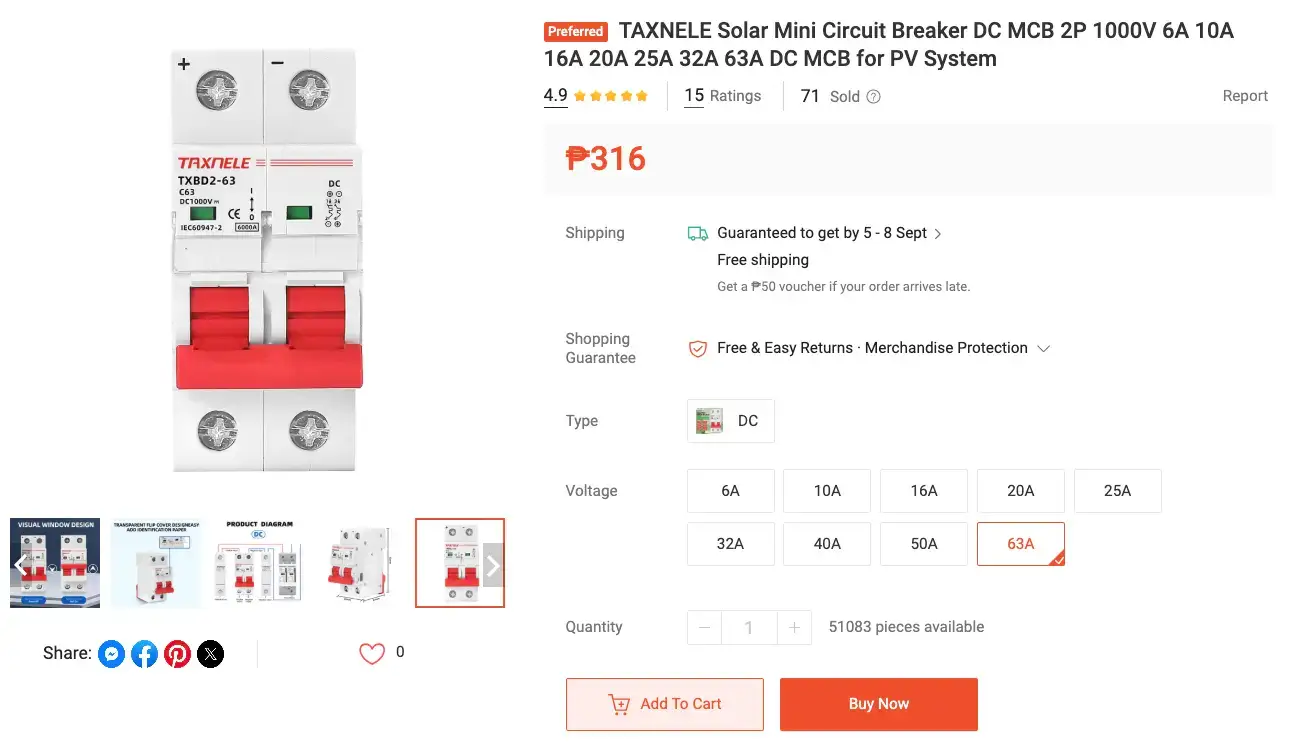

You will notice on Shopee and Lazada that the maximum amperage for a standard MCB is typically 63A.

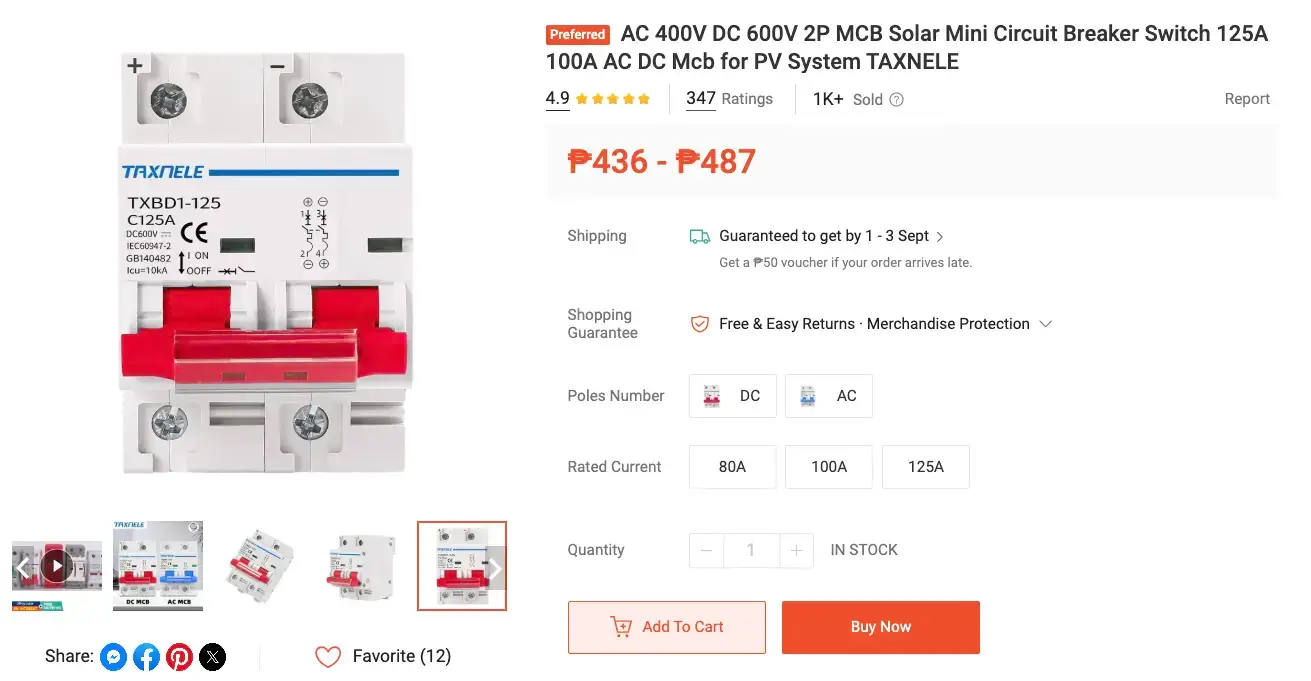

If you need a higher amperage, you will likely find a wider MCB that can support from 80A to 125A.
However, even with wider MCBs, there is still a limitation in how much power they can safely handle.
⚙️ Understanding the Limitation (Very Important)
Since 125A is typically the maximum amperage for MCB, your system capacity is limited depending on voltage.
| Volts | Maximum Watts |
|---|---|
| 12V | 1,500W |
| 24V | 3,000W |
| 48V | 6,000W |
👉 This means:
- A 12V system using 125A MCB can only handle up to 1500W
- Exceeding this can lead to tripping or overheating 🔥
⚠️ The 25% Safety Factor (DO NOT SKIP THIS)
In real-world applications, you should never use 100% of breaker capacity.
A 25% safety allowance is recommended to:
- Prevent overheating
- Extend breaker lifespan
- Improve system safety
After applying this, your usable capacity becomes:
| Volts | Maximum Watts |
|---|---|
| 12V | 1,200W |
| 24V | 2,400W |
| 48V | 4,800W |
👉 This is the real usable limit, not the theoretical one.
❗ What If Your Load Exceeds This?
If your system requires more than what MCB can safely handle, you have two options:
1. Upgrade Voltage (Recommended) 🔼
- Convert from 12V → 24V or 48V
- Reduces current → safer and more efficient
- Allows higher power without increasing amperage
2. Use MCCB 🔧
- Supports higher amperage (100A to 250A or more)
- Designed for heavier loads
- More stable for long-term usage
🛒 MCCB Capacity Explained

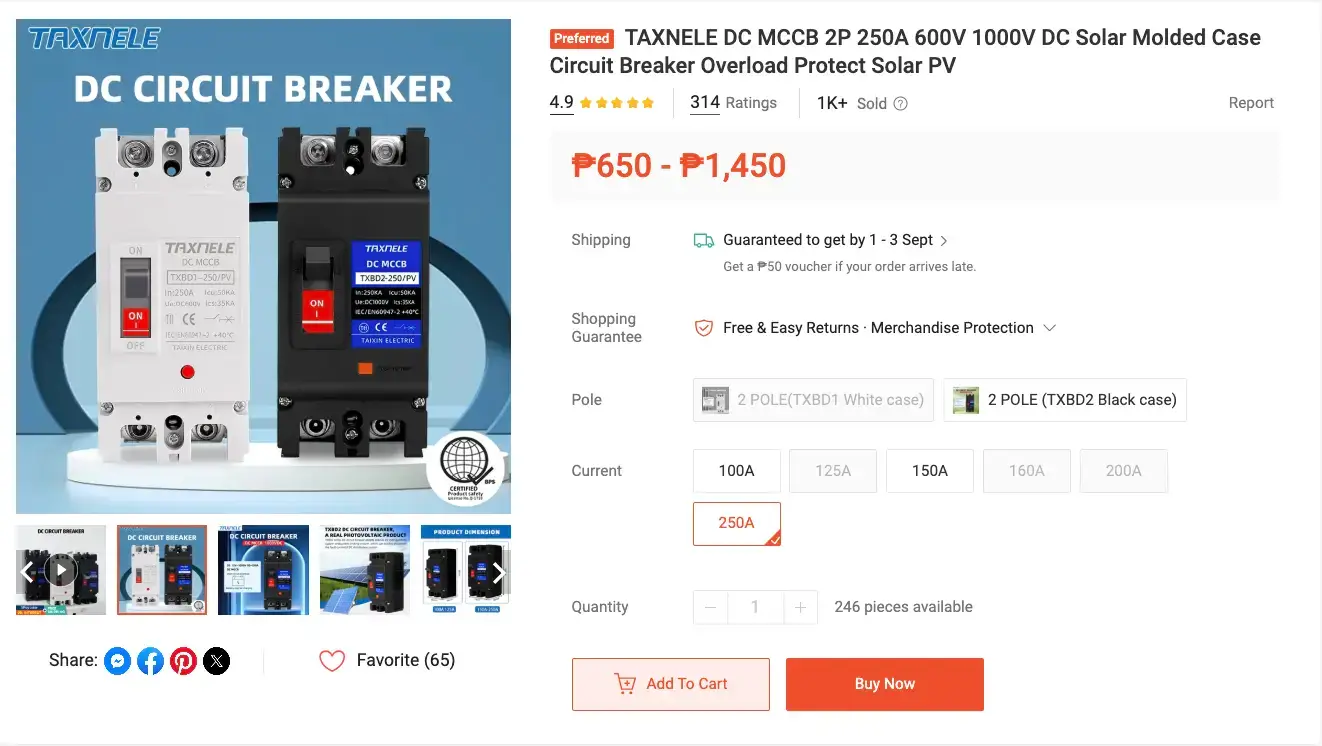

MCCB sizes available online typically range from 100A to 250A.
Using a 250A MCCB, and applying the same 25% safety factor:
| Volts | Maximum Watts |
|---|---|
| 12V | 2,400W |
| 24V | 4,800W |
| 48V | 9,600W |
👉 This clearly shows why MCCB is required for larger systems.

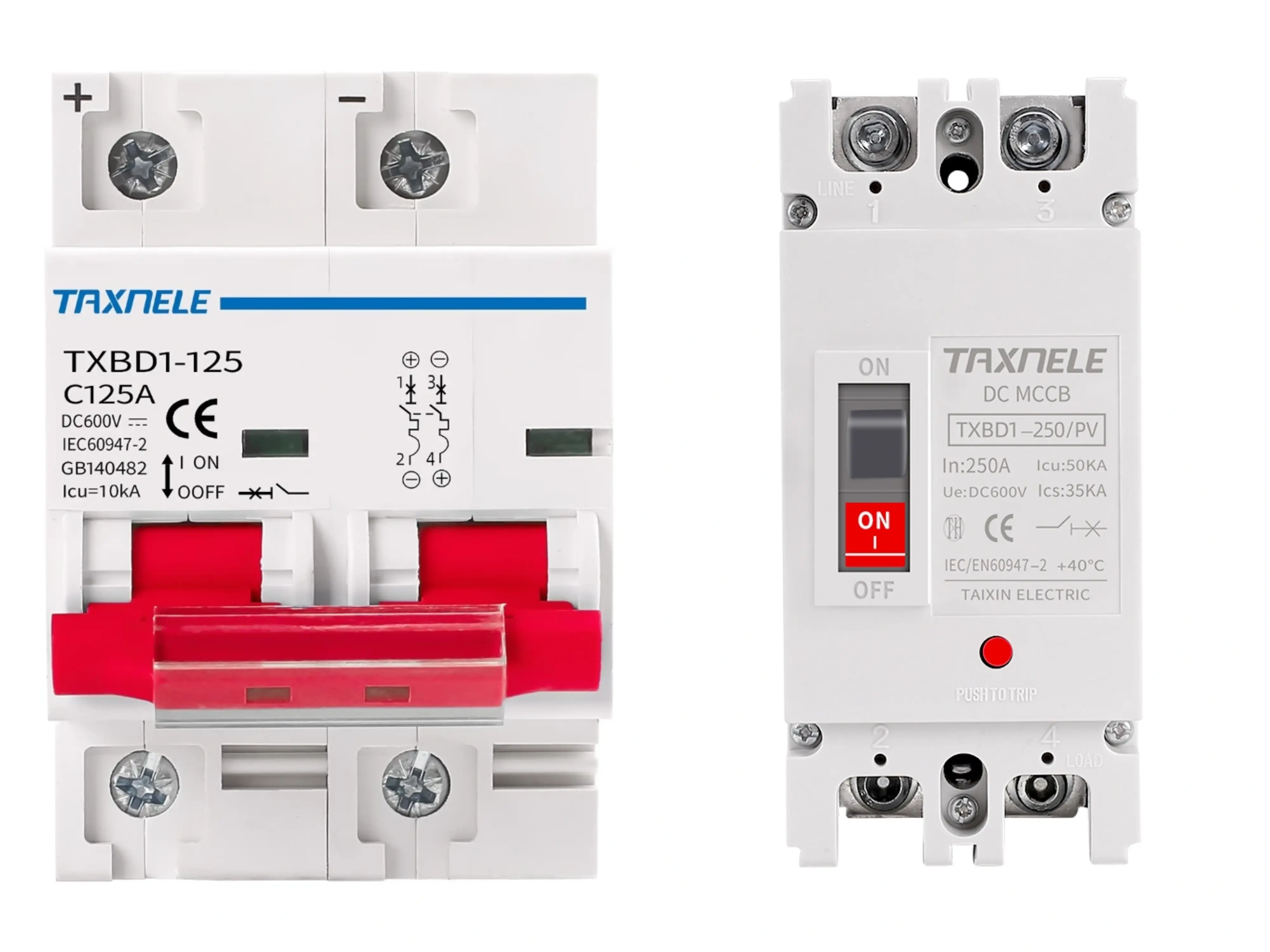

🧠 MCB vs MCCB: Quick Comparison
| Feature | MCB | MCCB |
|---|---|---|
| Typical Use | Small systems | Medium to large systems |
| Max Amperage | Up to ~125A | 100A–250A+ |
| Cost | Lower 💰 | Higher 💰 |
| Size | Compact | Larger |
| Protection Level | Basic | Advanced |
| Best For | Beginner setups | High-load systems |
📊 Recommended Breaker per Setup
12V
| Breaker | Amperes | Usable Watts | Buy |
|---|---|---|---|
| MCB | 63A | 605W |  |
| Wider MCB | 125A | 1,200W | |
| MCCB | 250A | 2,400W | |
24V
| Breaker | Amperes | Usable Watts | Buy |
|---|---|---|---|
| MCB | 63A | 1,210W | |
| Wider MCB | 125A | 2,400W | |
| MCCB | 250A | 4,800W | |
48V
| Breaker | Amperes | Usable Watts | Buy |
|---|---|---|---|
| MCB | 63A | 2,420W | |
| Wider MCB | 125A | 4,800W | |
| MCCB | 250A | 9,600W | |
⚠️ Common Mistakes to Avoid
- Using MCB for high-load systems ❌
- Ignoring the 25% safety allowance ❌
- Oversizing loads without upgrading voltage ❌
- Buying low-quality breakers (risk of failure) ❌
✅ Final Recommendation
If you are building:
- 🔹 Small setup → MCB is enough
- 🔹 Medium setup → Wider MCB or small MCCB
- 🔹 Large setup → MCCB is required
👉 If unsure, always choose safety over cost.
👉 Not sure what amperage you need? Use our Breaker Sizing Calculator to get the right size for your inverter and voltage.
